Tire mold EDM series

CJ-580T/CNC600T :

Main Unit Features:

1.Designed for radial segmented parting tire molds.
2.The worktable equipped with encoders can ensure positioning accuracy.
3.The worktable can be rotated and tilted to meet the machining requirement for side patterns of radial parting mold and stamping steel plate.
4.Z axis permits tilting for efficient residue exhaust, while upgrading machining stability and efficiency.
5.Micrometer adjustment on X1 and Y axis for ease of electrode setup.
6.The work head can be moved to the side for convenient mold setup.



Encoder:
The table tilting mechanism is equipped with an encoder, ensuring high positioning accuracy of mold.

Tilting Table:
The table can be tilted 0-90, allowing for convenient mold setup.


Filtering Unit
Electrode

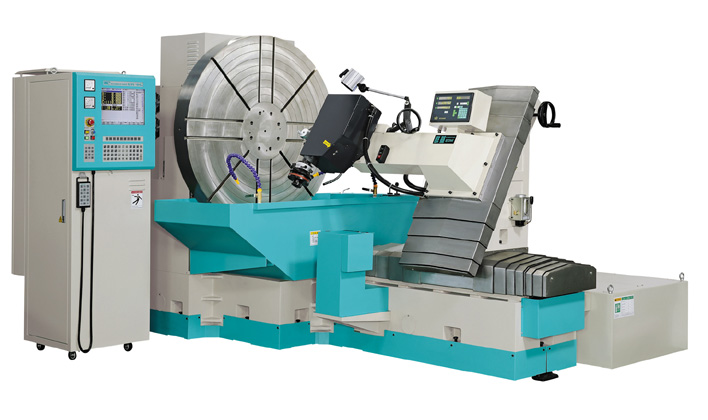

CNC1670T :

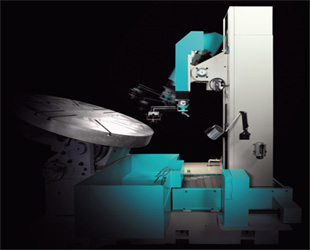

Main Unit Features:

1.Closed-loop feedback control on C-axis assures extra high positioning accuracy of up to 0.001.(Patented)
2. 30 slant column construction.(Patented)
3. Spindle tilts 90 forward and backward.(Patented)
4. Designed for machining various tire molds, such as segmented parting mold, two-piece mold and stamping steel plate.
5. The electrical discharge machining system is specially designed for tire mold machining.
6. State-of-the-art CNC control with 15 TFT LCD monitor.
7. Comprehensive lubrication design ensures extra smooth movement.



Rotary Optical Scale on C-axis:
The C-axis is equipped with an imported high precision rotary optical scale, providing a close-loop feedback control. This is a combined with the use of DC servo motor for positioning control, featuring extra high positioning accuracy of up to 0.001. This outstanding feature makes the machine excellent for producing high precision tire molds.(Patented)

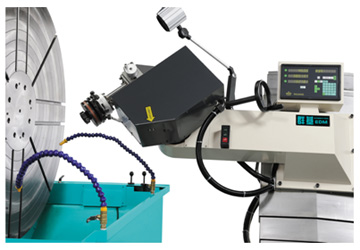

30 Slant Column

Unlike conventional machining, the Lead CNC 1670T is specially designed with a slant column. It allows the spindle to perform machining at a 30 degree angle, solving residue removing problem.(Patented)

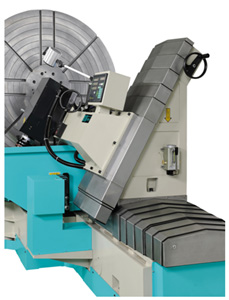

Spindle Tilting 90

The spindle can be tilted 90 forward and backward to allow the machine to produce various tire molds.(Patented)

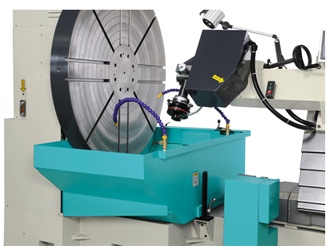

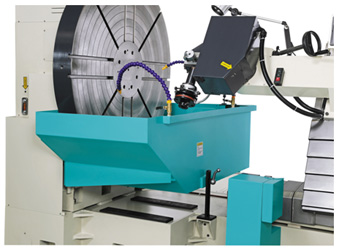

Lifting Fluid Tank

The fluid tank can be elevated to facilitate immersed machining and mold loading and unloading.(Patented)
